R410A refrigerant, environmentally friendly. Higher water temperature output up to 60 ℃. Tube in shell heat ex-changer, Hi-COP & safety. Defrost automatically. MODBUS communication. Full automatically operation. Through different installation, the system can be used for cooling, heating and providing sanitary hot water.

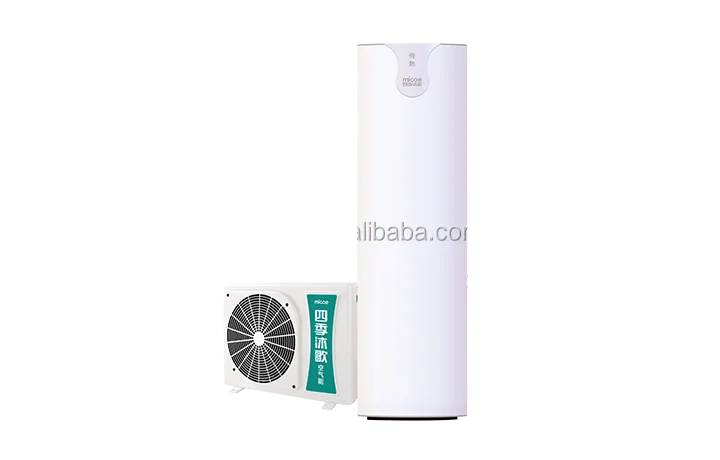

Micoe air source heat pump water heater
Product Description

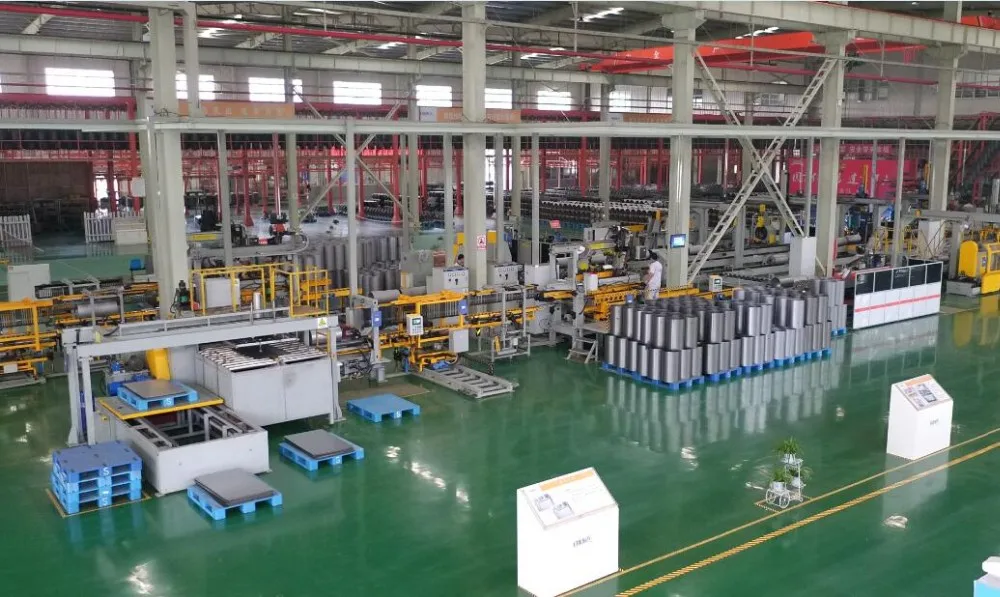

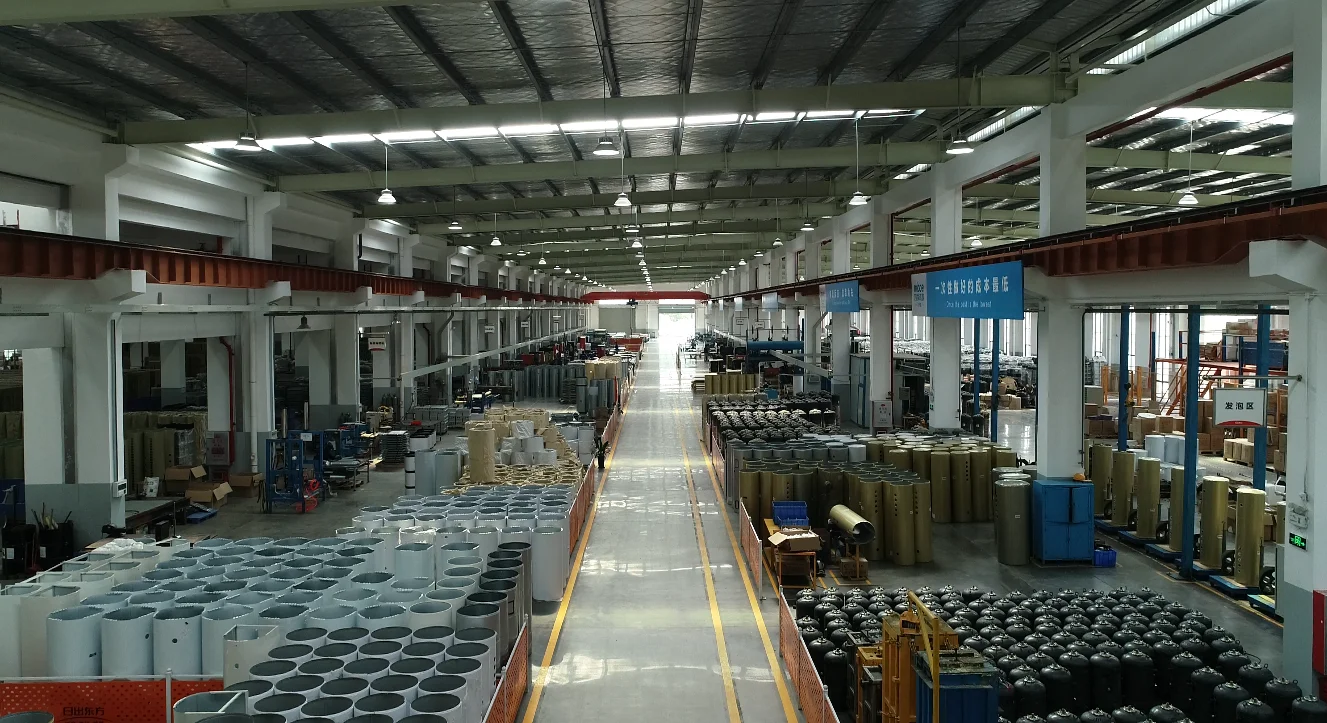

Factory Pictures
Product Overview
Rensidential Heat Pump Water Heater
Energy efficient hot water with a Micoe Heat Pump.
Energy efficiency A+, save up to 75% on your hot water costs !
Multipurposes for air cooling and water heating.
Energy efficiency A+, save up to 75% on your hot water costs !
Multipurposes for air cooling and water heating.
Features at a Glance
Product Specifications
Model No. | MHP-004A1 | MHP-006A1 | MHP-008A1 | MHP-010A1 | MHP-012A1 | MHP-018A1 | ||||||
Power Supply | 220V/1/50Hz | 380V/3/50Hz | ||||||||||
Test Condition : Heating Capacity at Air 20℃/15℃, Water Temperature From 15℃ to 55 ℃ | ||||||||||||
Heating Capacity(kW) | 3.6 | 5.4 | 7.6 | 10.8 | 13.2 | 18.8 | ||||||
Power Input(kW) | 0.86 | 1.26 | 1.81 | 2.54 | 3.17 | 4.56 | ||||||
COP | 4.18 | 4.29 | 4.20 | 4.25 | 4.16 | 4.12 | ||||||
Max Power Input(kW) | 1.45 | 2.01 | 2.75 | 3.02 | 4.51 | 6.02 | ||||||
Max Current(A) | 6.5 | 9.0 | 12.0 | 15.2 | 23.0 | 11.0 | ||||||
Refrigerant | R410a | R410a | R410a | R410a | R410a | R410a | ||||||
Expansion Valve | Electronic | |||||||||||
Air Flow Direction | Horizontal | |||||||||||
Water Pressure Drop(Kpa) | 35.0 | 35.0 | 40.0 | 45.0 | 45.0 | 45.0 | ||||||
Net Dimensions(mm) | 936×385×550 | 956×420×614 | 986×420×798 | 1003×375×1320 | ||||||||
Package Dimensions(mm) | 1030×445×592 | 1105×480×657 | 1158×490×930 | 1070×445×1440 | ||||||||
Working temperature range(℃) | -15～43 | -15～43 | -15～43 | -15～43 | -15～43 | -15～43 | ||||||
Noise(dB) | 47 | 49 | 52 | 53 | 53 | 54 | ||||||
Water connection(mm) | 20 | 20 | 20 | 20 | 20 | 25 | ||||||
Similar Products

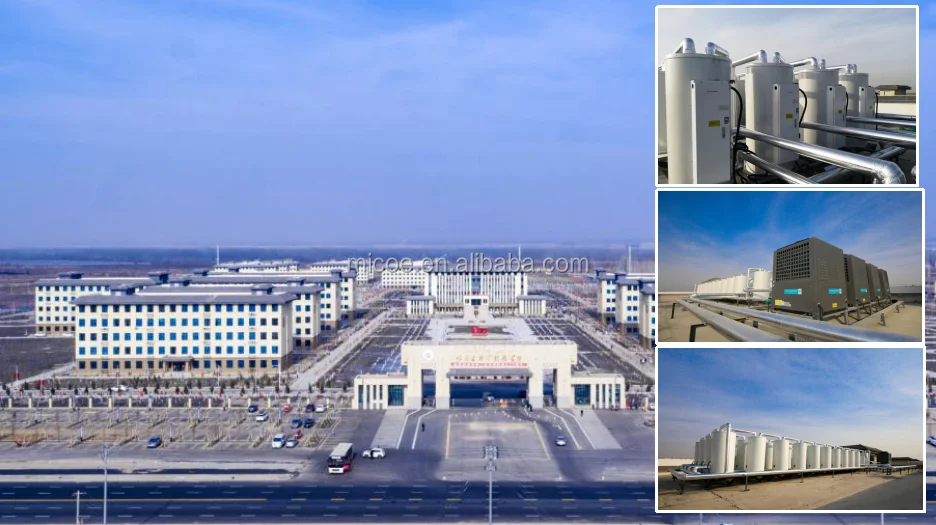

Successful Projects
Micoe have successfully built more than 10000 hot water and space heating projects over the world, we have enough confidence and experiences to provide you any hot water or space heating solutions anwhere around the world.
Remarks
Should you require any information in regard to us, our range of products and services or if we can be of further assistance in anyway please do not hesitate to contact me.
