The MICOE HIGH EFFICIENT Heat Pump for swimming pool are designed to make you get them most enjoyment from your pool. With pool temperatures programmable up to 40 deg Celsius you can now swim all year round. No longer do you need to have your roof covered with solar panels or spend thousands of Rand on electricity.
MICOE Mini DC Inverter Air To Water Pool Heaters R32 Heat Pumps
Product Description
Products Description
MICOE Swimming Pool Heat Pump
Product Specifications

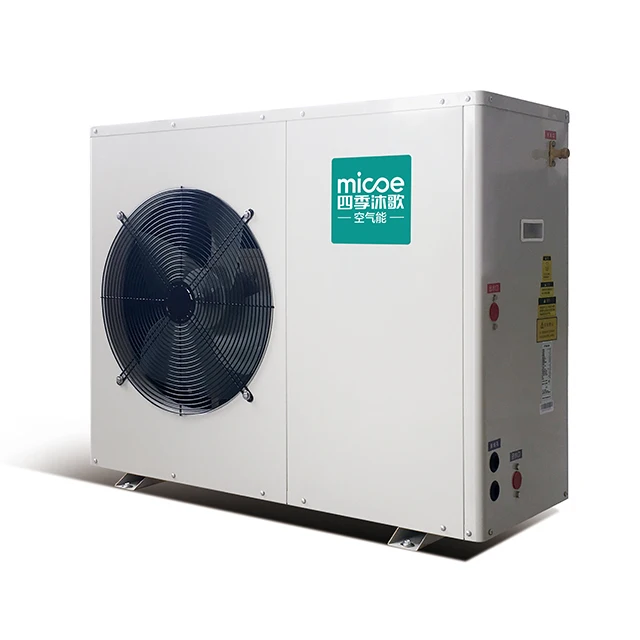

Residential Type ---- Metal Case
1) R410A refrigerant, environmentally friendly. 2) Titanium heat-exchanger, corrosion resistance. 3) High pressure protection function. 4) Defrost automatically, intelligent and fast. 5) With MODBUS communication. 6) With water flow switch. 7) The heat pump can heat and cool the swimming pool.1) R410A refrigerant, environmentally friendly. 2) Titanium heat-exchanger, corrosion resistance. 3) High pressure protection function. 4) Defrost automatically, intelligent and fast. 5) With MODBUS communication. 6) With water flow switch. 7) The heat pump can heat and cool the swimming pool.

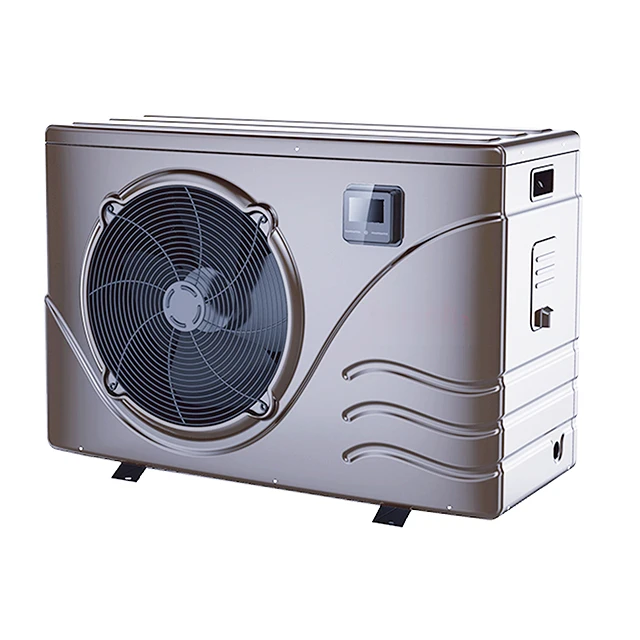

Residential Type ---- Plastic Case
1) R410A refrigerant, environmentally friendly. 2) Titanium heat-exchanger, corrosion resistance. 3) High pressure protection function. 4) Defrost automatically, intelligent and fast. 5) With MODBUS communication. 6) With water flow switch. 7) The heat pump can heat and cool the swimming pool. 8) ABS plastic outer shell, corrosion resistance.1) R410A refrigerant, environmentally friendly. 2) Titanium heat-exchanger, corrosion resistance. 3) High pressure protection function. 4) Defrost automatically, intelligent and fast. 5) With MODBUS communication. 6) With water flow switch. 7) The heat pump can heat and cool the swimming pool. 8) ABS plastic outer shell, corrosion resistance.
Commercial Type
1) R410A refrigerant, environmentally friendly. 2) Higher water temperature output to 40℃ 。 3) Titanium heat ex-changer corrosion resistance. 4) High pressure protection function. 5) Defrost automatically, intelligent and fast. 6) With MODBUS communication. 7) Full automatically operation.1) R410A refrigerant, environmentally friendly. 2) Higher water temperature output to 40℃ 。 3) Titanium heat ex-changer corrosion resistance. 4) High pressure protection function. 5) Defrost automatically, intelligent and fast. 6) With MODBUS communication. 7) Full automatically operation.
Product Paramenters
Residential Type ---- Metal Case | ||||||||||||
Model No. | MSHP-005A1 | MSHP-006A1 | MSHP-008A1 | MSHP-012A1 | MSHP-016A1 | MSHP-030A1 | ||||||
Power Supply | 220V/1/50Hz | 380V/3/50Hz | ||||||||||
Test Condition : Heating Capacity at Air 27℃/24℃, Water 27℃ In , 29℃ Out | ||||||||||||
Heating Capacity（kW) | 5.0 | 7.2 | 9.5 | 13.0 | 16.1 | 30 | ||||||
Power Input（kW) | 0.86 | 1.24 | 1.62 | 2.25 | 2.75 | 4.95 | ||||||
COP | 5.84 | 5.81 | 5.88 | 5.79 | 5.85 | 6.06 | ||||||
Heating Capacity at Air 15℃/12℃, Water 26℃ in, 28℃ out | ||||||||||||
Heating Capacity（kW) | 3.6 | 5.5 | 7.0 | 10.0 | 12.5 | 23.5 | ||||||
Power Input（kW) | 0.73 | 1.12 | 1.41 | 2.05 | 2.54 | 4.69 | ||||||
COP | 4.94 | 4.92 | 4.95 | 4.88 | 4.93 | 5.01 | ||||||
Cooling Capacity at Air 35℃/24℃, Water 29℃ in, 27℃ out | ||||||||||||
Cooling Capacity（kW) | 3.2 | 5.1 | 6.5 | 9.2 | 11.3 | 20 | ||||||
Power Input（kW) | 0.94 | 1.51 | 1.90 | 2.69 | 3.36 | 5.78 | ||||||
EER | 3.41 | 3.38 | 3.43 | 3.42 | 3.36 | 3.46 | ||||||
Max Power Input（kW) | 1.16 | 1.68 | 2.24 | 3.24 | 3.72 | 6.35 | ||||||
Max Current(A) | 5.8 | 8.5 | 11.3 | 16.4 | 18.8 | 11.4 | ||||||
Refrigerant | R410a | |||||||||||
Heat Exchanger | Titanium | |||||||||||
Air Flow Direction | Horizontal | |||||||||||
Water Flow Volume（m3/h) | 2.0 | 3.0 | 3.5 | 5.5 | 6.0 | 8.0 | ||||||
Net Dimensions(L*W*H)（mm） | 936×385×550 | 1011×420×614 | 986×420×798 | 1003×374×1318 | ||||||||
Package Dimensions(L*W*H)（mm） | 1055×460×620 | 1110×480×670 | 1115×490×930 | 1090×460×1474 | ||||||||
Working temperature range（℃） | -15～43 | |||||||||||
Noise（dB) | 48 | 48 | 50 | 52 | 52 | 54 | ||||||
Water connection(mm) | 50 | |||||||||||
Residential Type ---- Plastic Case | ||||||||||
Model No. | MSHP-007B1 | MSHP-010B1 | MSHP-012B1 | MSHP-015B1 | MSHP-019B1 | |||||
Power Supply | 220V/1/50Hz | |||||||||
Test Condition : Heating Capacity at Air 27℃/24℃, Water 27℃ In , 29℃ Out | ||||||||||
Heating Capacity（kW) | 7.2 | 10.0 | 12.5 | 15.0 | 18.8 | |||||
Power Input（kW) | 1.19 | 1.63 | 2.05 | 2.45 | 3.13 | |||||
COP | 6.05 | 6.13 | 6.10 | 6.12 | 6.01 | |||||
Heating Capacity at Air 15℃/12℃, Water 26℃ in, 28℃ out | ||||||||||
Heating Capacity（kW) | 5.1 | 7.2 | 9.5 | 12.5 | 15.5 | |||||
Power Input（kW) | 1.00 | 1.40 | 1.86 | 2.44 | 3.06 | |||||
COP | 5.10 | 5.14 | 5.11 | 5.12 | 5.07 | |||||
Cooling Capacity at Air 35℃/24℃, Water 29℃ in, 27℃ out | ||||||||||
Cooling Capacity（kW) | 4.5 | 6.5 | 8.5 | 11.2 | 14.0 | |||||
Power Input（kW) | 1.30 | 1.80 | 2.39 | 3.22 | 4.11 | |||||
EER | 3.46 | 3.61 | 3.56 | 3.48 | 3.41 | |||||
Max Power Input（kW) | 1.80 | 2.50 | 3.00 | 3.60 | 4.70 | |||||
Max Current(A) | 9.1 | 12.6 | 15.2 | 18.2 | 24.5 | |||||
Refrigerant | R410a/R32 | |||||||||
Heat Exchanger | Titanium | |||||||||
Casing material | ABS plastic | |||||||||
Air Flow Direction | Horizontal | |||||||||
Water Flow Volume（m3/h) | 3.0 | 4.0 | 6.0 | 6.5 | 8.0 | |||||
Net Dimensions(L*W*H)（mm） | 972*430*653 | 1083*448*704 | ||||||||
Package Dimensions(L*W*H)（mm） | 1022*460*788 | 1130*460*830 | ||||||||
Working temperature range（℃） | -15～43 | |||||||||
Noise（dB) | ≤48 | ≤48 | ≤49 | ≤51 | ≤51 | |||||
Net weight (Kg) | 46 | 51 | 58 | 72 | 85 | |||||
Gross weight (Kg) | 59 | 65 | 73 | 88 | 102 | |||||
Commercial Type | ||||||||||||
Model No. | MSHP-025A1 | MSHP-050A1 | MSHP-075A1 | MSHP-120A1 | MSHP-170A1 | MSHP-220A1 | ||||||
Power Supply | 380V/3/50Hz | |||||||||||
Heating Capacity at Air 27℃/24℃, Water 27℃ in, 29℃ out | ||||||||||||
Heating Capacity（kW) | 25 | 50 | 75 | 120 | 170 | 220 | ||||||
Power Input（kW) | 4.2 | 8.4 | 12.8 | 20.1 | 28.6 | 37.6 | ||||||
COP | 5.91 | 5.95 | 5.86 | 5.98 | 5.95 | 5.85 | ||||||
Heating Capacity at Air 15℃/12℃, Water 26℃ in, 28℃ out | ||||||||||||
Heating Capacity（kW) | 20 | 42 | 65 | 100 | 140 | 185 | ||||||
Power Input（kW) | 4.1 | 8.6 | 13.5 | 20.4 | 28.9 | 38.6 | ||||||
COP | 4.86 | 4.88 | 4.81 | 4.89 | 4.85 | 4.79 | ||||||
Cooling Capacity at Air 35℃/24℃, Water 29℃ in, 27℃ out | ||||||||||||
Cooling Capacity（kW) | 18 | 36 | 56 | 85 | 120 | 160 | ||||||
Power Input（kW) | 5.3 | 10.5 | 16.6 | 24.6 | 35.2 | 47.6 | ||||||
EER | 3.39 | 3.42 | 3.38 | 3.45 | 3.41 | 3.36 | ||||||
Max Power Input（kW) | 6.9 | 13.2 | 20.1 | 29.1 | 48.5 | 67.2 | ||||||
Max Current(A) | 12.3 | 23.5 | 35.9 | 52.2 | 87.0 | 121.1 | ||||||
Refrigerant | R410a | |||||||||||
Compressor Type | Scroll | |||||||||||
Heat Exchanger | Titanium | |||||||||||
Expansion Valve | Electronic | |||||||||||
Air Flow Direction | Vertical | |||||||||||
Water Flow Volume（m3/h) | 10 | 20 | 30 | 50 | 70 | 85 | ||||||
Net Dimensions(L*W*H)（mm） | 695×755×1000 | 1417×755×1000 | 1590×850×1500 | 2150×1078×2258 | ||||||||
Working temperature range（℃） | -15～43 | |||||||||||
Noise（dB) | ≤60 | ≤65 | ≤68 | ≤70 | ≤70 | ≤75 | ||||||
Net weight (Kg) | 120 | 250 | 460 | 760 | 900 | 1200 | ||||||
Water connection(mm) | 50 | 63 | 63 | 75 | 90 | 110 | ||||||
Similar Products
EVI Technology Heat Pump With DC Inverter
Company Profile
MICOE CORPORATION
Founded in 2000, MICOE has become a leading brand in the solar thermal industry with main business of Solar Water Heater and AIR
SOURCE HEAT PUMP. As a cooperative partner of China Space and a high-tech enterprise, MICOE is Listed in Shanghai A-Share Stock
Market (Stock code 603366SH) specialized in researching, developing and applicating renewable energy, providing comfortable hot
water and space heating. Nowadays MICOE is the largest manufacturer and seller of SOLAR WATER HEATER and Air Source Heat Pump in
the industry, exporting to more than 100 countries and areas. Making sunshine brighter, air fresher, water cleaner is the
sustainable developing strategy of MICOE.
SOURCE HEAT PUMP. As a cooperative partner of China Space and a high-tech enterprise, MICOE is Listed in Shanghai A-Share Stock
Market (Stock code 603366SH) specialized in researching, developing and applicating renewable energy, providing comfortable hot
water and space heating. Nowadays MICOE is the largest manufacturer and seller of SOLAR WATER HEATER and Air Source Heat Pump in
the industry, exporting to more than 100 countries and areas. Making sunshine brighter, air fresher, water cleaner is the
sustainable developing strategy of MICOE.
Certifications
FAQ
Q: How many years have your company been in heat pump industry?
A: We are a leading manufacturer for solar water heaters,heat pump since 1999 in China.
We MICOE has full experience in the field of heat pumps for more than 18 years.MICOE has kept growing rapidly during these years.
Q: Do you accept OEM & ODM?
A: Yes. We can produce MICOE standard products under clients' brand, modify the products to satisfy client's personalized
requirements and work together with clients to design and produce a totally new products.
Q: What support do you offer to clients?
A: We can: provide product certification requirements for local markets; provide catalogs, technical manuals; co-exhibit with the clients in leading industry exhibitions; do promotion on the local market’s media by our news release resources.
Q: How long can I get the salesman's contact after sending the inquiry?
A: The customer service will check the inquiry message every day and match the right sales manager for every inquiry. The sales manager will contact you within 24 hours after receiving the sales leads. Please complete your email and contact number in your personal information so that we can contact you soon.Q: How many years have your company been in heat pump industry?
Q: What Others products do you have?
Heat pump water heater, solar water heater,Water Purifier ,Gas & Electric Water heaters Etc.
A: We are a leading manufacturer for solar water heaters,heat pump since 1999 in China.
We MICOE has full experience in the field of heat pumps for more than 18 years.MICOE has kept growing rapidly during these years.
Q: Do you accept OEM & ODM?
A: Yes. We can produce MICOE standard products under clients' brand, modify the products to satisfy client's personalized
requirements and work together with clients to design and produce a totally new products.
Q: What support do you offer to clients?
A: We can: provide product certification requirements for local markets; provide catalogs, technical manuals; co-exhibit with the clients in leading industry exhibitions; do promotion on the local market’s media by our news release resources.
Q: How long can I get the salesman's contact after sending the inquiry?
A: The customer service will check the inquiry message every day and match the right sales manager for every inquiry. The sales manager will contact you within 24 hours after receiving the sales leads. Please complete your email and contact number in your personal information so that we can contact you soon.Q: How many years have your company been in heat pump industry?
Q: What Others products do you have?
Heat pump water heater, solar water heater,Water Purifier ,Gas & Electric Water heaters Etc.
